MFB production line, 50 000 m3/year
|
Name
|
Number
|
Units
|
|
1. Raw materials preparation
|
|
|
|
01. Raw materials feeding belt conveyor
|
GZ01
|
1
|
|
02. Drum shaving machine
|
BX218
|
1
|
|
03. Belt conveyor
|
GZ08
|
1
|
|
04. Magnetic iron remover
|
GZ07
|
1
|
|
05.Cup elevator
|
GZ09
|
1
|
|
06. Belt conveyor
|
GZ10
|
1
|
|
07. Bunker for thermal abrasive material
|
|
1
|
|
08.Belt conveyor
|
|
1
|
|
2. Fiber preparation
|
|
|
|
9. Thermal attritor
|
BM1111-15
|
1
|
|
10. Raw materials feeding pipe
|
GZ12
|
1
|
|
11. Paraffin spraying device
|
GZ16
|
1
|
|
12. Glue storage
|
GZ18
|
1
|
|
13. Glue spraying measuring device
|
GZ20
|
1
|
|
14.Air flow fiber dryer
|
GZ24
|
1
|
|
15. Dry materials storage bunker
|
GZ25
|
2
|
|
3. Hydraulic molding
|
|
|
|
16. Stacking conveyor
|
GZ26
|
1
|
|
17. Stacker
|
GZ28
|
1
|
|
18. Cut fiber force conveyor
|
GZ29
|
3
|
|
19. Dust catching vacuum conveyor
|
GZ30
|
1
|
|
20. Slab
|
GZ31
|
1
|
|
21. Forepress
|
GZ32
|
1
|
|
22. Synchronous conveyor
|
GZ33
|
1
|
|
23. Sidewall cutter
|
GZ34
|
1
|
|
24. Horizontal saw
|
GZ35
|
1
|
|
25. Bunker
|
GZ36
|
1
|
|
26. Saw, cleaner, power fiber conveyor
|
GZ37
|
1
|
|
27. Return force system
|
GZ38
|
|
|
28. Accelerating conveyor
|
GZ41
|
1
|
|
29. Reserve conveyor №1
|
GZ42
|
1
|
|
30. №2 reserve conveyor, №3 reserve conveyor
|
GZ42
|
1
|
|
31. Uncoveler sheet conveyor
|
GZ43
|
1
|
|
32.Presser
|
GZ45
|
1
|
|
33. Unloader
|
GZ46
|
1
|
|
34. Presser’s sale system
|
GZ47
|
1
|
|
35. Releasing conveyor
|
GZ50
|
1
|
|
36. Cooling roll conveyor
|
GZ51
|
1
|
|
37. Roll cooler
|
GZ52
|
1
|
|
38. Cooling release conveyor
|
GZ53
|
1
|
|
39. Stowing hydraulic elevator
|
GZ55
|
1
|
|
40.Hydraulic elevator
|
GZ57
|
1
|
|
41. Vertical and horizontal sidewall cutter
|
GZ54(JJJ901)
|
1
|
|
42. Inclined conveyor
|
GZ58
|
1
|
|
43. Polishing machine
|
BSG2713
|
1
|
|
44. Releasing conveyor
|
GZ60
|
1
|
|
45. Hydraulic elevator
|
GZ61
|
1
|
|
46. Dust collecting system
|
GZ62
|
1
|
|
47. Electronic control equipment – chips preparation stage
|
GZ63A
|
1
|
|
48. Electronic control equipment – fiber preparation stage
|
GZ64A
|
1
|
|
49. Electronic control equipment – hot pressing for molding
|
GZ65A
|
1
|
|
50 Electronic control equipment for cooling system
|
GZ66A
|
1
|
|
51. Electronic control equipment – dust collecting during cutting the sidewalls
|
GZ67A
|
1
|

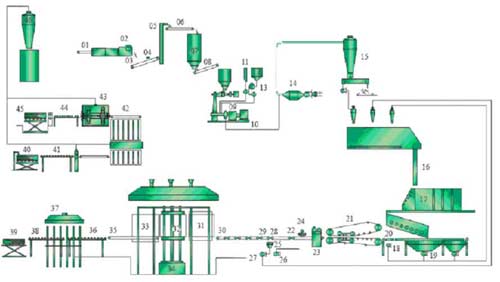

3.1 Drawing.Middle density MFB production line (50 000 m3)
Conventions
|
01. Raw materials feeding belt conveyor
02. Drum shaving machine
03. Belt conveyor
04. Magnetic iron remover
05.Cup elevator
06. Belt conveyor
07. Bunker for thermal abrasive material
08.Belt conveyor
9. Thermal attritor
10. Raw materials feeding pipe
11. Paraffin spraying device
12. Glue storage
13. Glue spraying measuring device
14.Air flow fiber dryer
15. Dry materials storage bunker
16. Stacking conveyor
17. Stacker
18. Cut fiber force conveyor
19. Dust catching vacuum conveyor
20. Slab
21. Forepress
22. Synchronous conveyor
23. Sidewall cutter
24. Horizontal saw
|
25. Bunker
26. Saw, cleaner, power fiber conveyor
27. Return force system
28. Accelerating conveyor
29. Reserve conveyor №1
30. №2 reserve conveyor, №3 reserve conveyor
31. Uncoveler sheet conveyor
32.Presser
33. Unloader
34. Presser’s sale system
35. Releasing conveyor
36. Cooling roll conveyor
37. Roll cooler
38. Cooling release conveyor
39. Stowing hydraulic elevator
40.Hydraulic elevator
41. Vertical and horizontal sidewall cutter
42. Inclined conveyor
43. Polishing machine
44. Releasing conveyor
45. Hydraulic elevator
46. Dust collecting system
|
