Process flow of arrangment of waste plastic recycling equipment

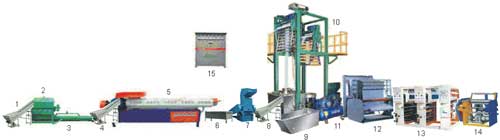

1.  Flow chart of arrangement of waste plastic recycling and large size tubular film production equipment with phlexographic printing

Price (€) – 70 000

Legends:

1. Raw materials feeding conveyor  (Not in the set, it can be ordered )
2. Raw materials crusher
3. Raw materials rinser
4. Crushed and rinsed raw materials feeding conveyor  (Not in the set, it can be ordered)
5. Agglimerator
6. Cooling bath  (Not in the set, it can be ordered)
7. Granulator (European standard)
8. Conveyor for feeding granules to exruder    (Not in the set, it can be ordered)
9. Extruder
10. Dye dispenser
11. Compressor
12. Film reception device including cuttung, rewinding and coronary charge
13. Two-colored flexographic machine
14. Tubular film winding machine
15. Control electric board

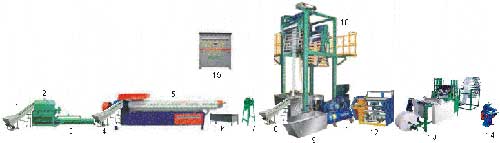

2.  Flow  chart of arrangement of  waste plastic recycling and T-shape bag production equipment
Price (€) – 75 000

Legends:

1. Raw materials feeding conveyor  (Not in he set, it can be ordered )
2. Raw materials crusher
3. Raw materials rinser
4. Crushed and rinsed raw materials feeding conveyor  (Not in the set, it can be ordered)
5. Agglomerator
6. Cooling bath  (Not in the set, it can be ordered)
7. Granulator (European standard)
8. Conveyor for feeding granules to exruder    (Not in the set, it can be ordered)
9. Extruder
10. Dye dispenser
11. Compressor
12. Film reception device including cuttung, rewinding and coronary charge
13. Tubular film winding device
14. Grip scarfer
15. Control electric board

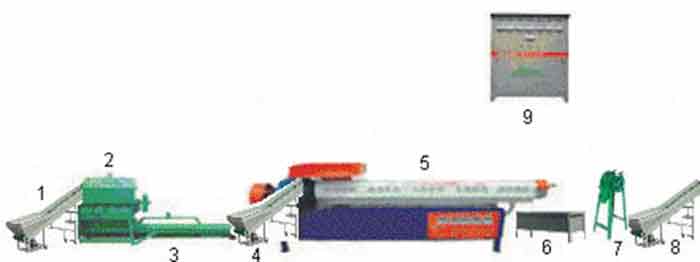

3. Waste plastic recycling and granule production line (basic model)

Price (€) – 24 000

Legends:

1. Raw materials feeding conveyor  (Not in he set, it can be ordered )
2. Raw materials crusher
3. Raw materials rinser
4. Crushed and rinsed raw materials feeding conveyor  (Not in the set, it can be ordered)
5. Agglomerator
6. Cooling bath  (Not in the set, it can be ordered)
7. Granulator (European standard)
8. Conveyor for feeding granules to exruder    (Not in the set, it can be ordered)
9. Control electric board

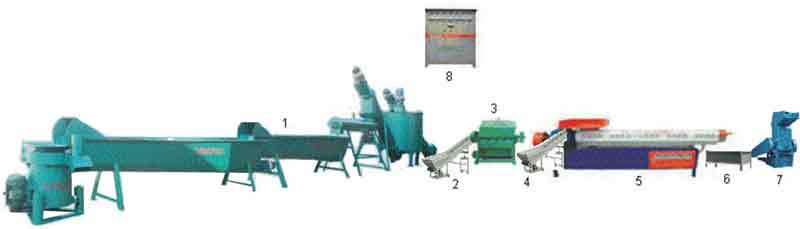

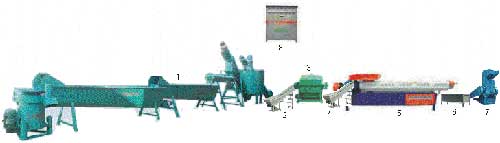

4. Process flow of arrangement of equipment for  PET bottle and film plastic recycling into  flakes, corresponding to Euro standard

Price (€) – 109 000

Legends:

1. Soft plastics washing line
2. Crushed and washed raw materials feeding conveyor (Not it the set, can be ordered)
3. Raw materials crusher
4. Crushed and washed raw materials feeding conveyor (Not it the set, can be ordered)
5. Agglomerator
6. Cooling bath (not in the bath, should be made by customer itself)
7. Granualtor (European standard
8. Control electric board

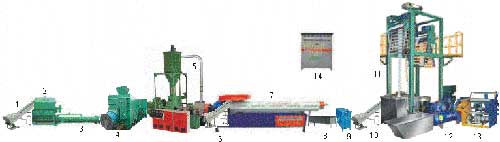

5. Process flow of arrangement of  equipment for recycling PET bottles and film plastics to flakes, corresponding to Russian and Chinese standards followed by production of tubular film

Price (€) – 65 000

Legends:

1. Raw materials feeding conveyor (not in the set, can be ordered)
2. Raw materials crusher
3. Raw materials washer
4. Label separator
5. Cut raw materials drier
6. Crushed and washed raw materials feeding conveyor (not in the set, can be ordered)
7. Agglomerator
8. Cooling bath (not in the set,  should be made by the customer itself
9. Russian standard granulator
10. Granules-to extruder feeding conveyor (not in the set, can be ordered)
11. Extruder
12. Dye dispenser
13. Compressor
14. Tubular film feeding machine ]
15. Control electric board
